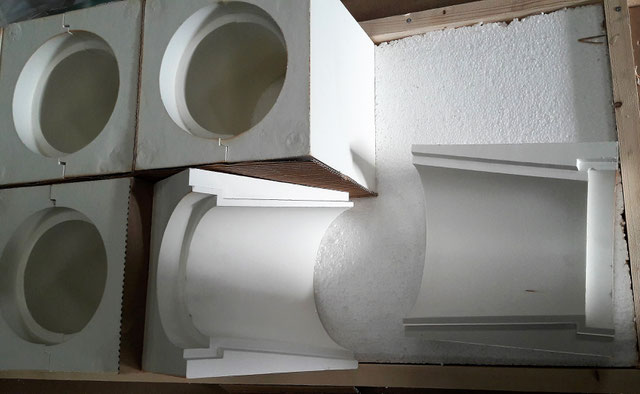

The burners blocks ERFI are manufactured with high temperature refractory materials (1400°C) with high content of alumina.

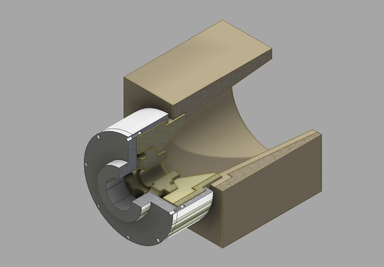

They are intended for the adaptation of the IN type burners for various parts of furnaces or combustion enclosures.

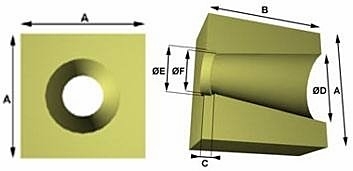

Square shaped burners blocks
Burner | A | B | C | D | E | F | Weight (KG) |
1IN - 1INR | 180 | 180 | 12 | 110 | 66 | 53 | 15 |
2IN - 2INR | 180 | 18 | 19 | 140 | 114 | 85 | 13 |
3IN | 220 | 220 | 25 | 155 | 134 | 100 | 26 |
4IN | 220 | 190 | 30 | 180 | 162 | 125 | 25 |
5IN | 240 | 210 | 45 | 200 | 185 | 140 | 33 |
Models 1 and 2 above can be forms adapted for arch mounting
(refractory port for sprung arch)
